Jetson X1 and X-Carrier – Embedded AI Computing Device
Please submit the Request a Quote form for pricing and availability on the Jetson™ and X-Carrier products.
The Jetson X1 is the latest of CAES APD’s exciting, embedded NVIDIA products! Designed to bring the power of the new Tegra X1 Maxwell Architecture to the embedded market, the Jetson X1 features a plethora of I/O to integrate into your system, including MIPI CSI–2, USB, Ethernet, PCIe, WiFi, Bluetooth, UART, SPI, I2C, I2S, and GPIO. The Jetson X1 is perfect for video analytics, featuring a mind–blowing 1 TFLOPs (FP16), and can process 4K video at up to 60 FPS using hard H.265 and H.264 encoding and decoding. The X1 features a quad core A57 in a big.LITTLE architecture for power optimized use. Using NVIDIA’s well developed software ecosystem, developers can create complex computer vision applications with ease using cuDNN and the Deep Learning GPU Training System (DIGITS), as well as other libraries from CUDA 7.5. The X1 can also be used in other demanding compute applications to include security, medical, and robotics.

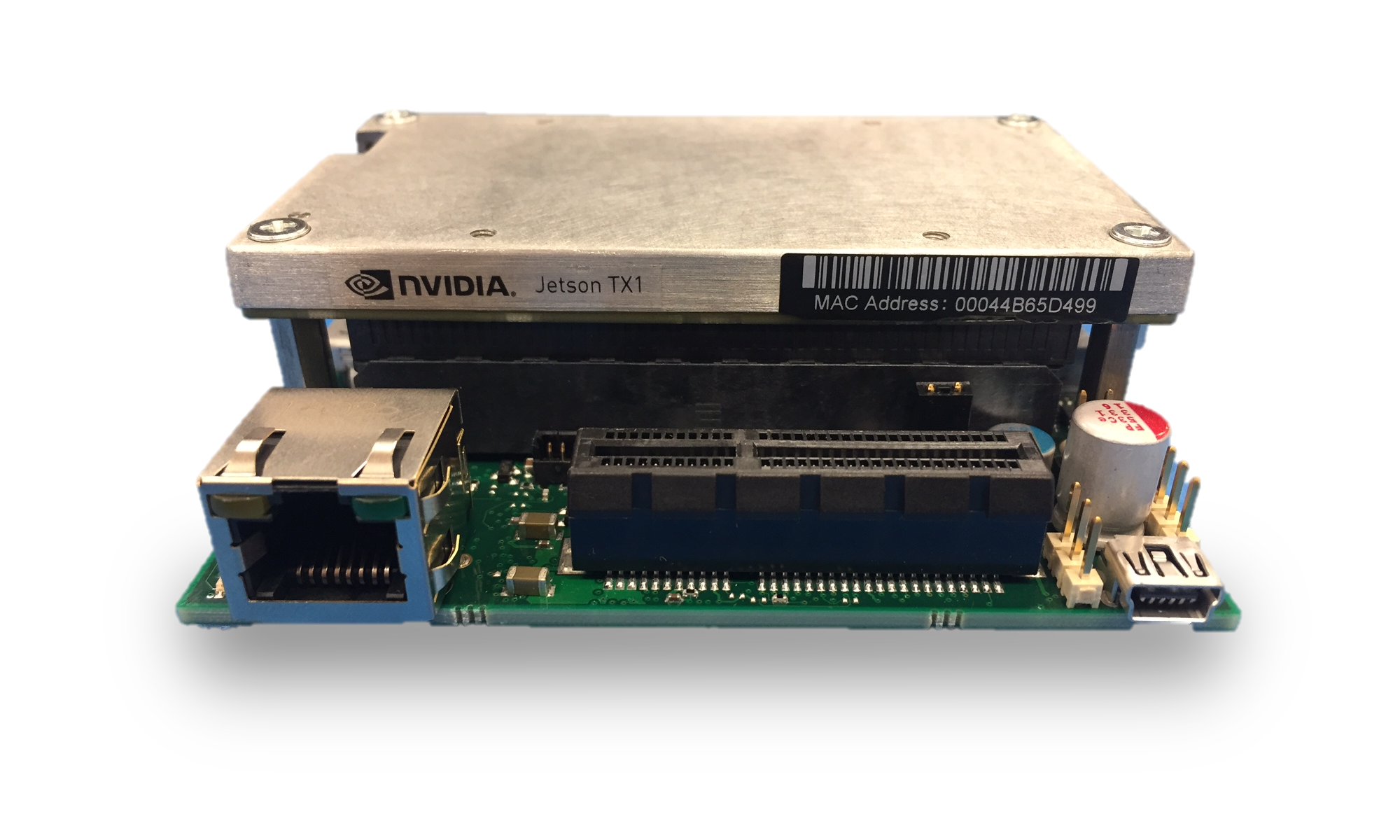

*Includes Jetson X1 and X-Carrier Board
Features
Components
- 256 CUDA® Cores
- 8 CPU cores, 64-bit (4x Cortex A57)
- NVIDIA Maxwell architecture
- 4 GB LPDDR4-3200
- 16 GB eMMC 5.1
- 802.11ac 2×2 MIMO WiFi and Bluetooth
- 1 TFLOPs (FP16)
- Onboard IMU
- Auto power up
I/O
- 6x CSI (12 lanes, 6 cameras)
- HDMI 2.0
- MicroSD and SATA 2.0
- USB 3.0, USB 2.0
- 1 GbE
- x1 and x4 PCIe Gen 2
- 2x UART, 2x SPI, 3x I2C, 3x I2S, GPIOs
Software
- Ubuntu Linux (Linux4Tegra)
- NVIDIA CUDA 7.5
- OpenCV
- OpenCX
- Caffe
- Theano
- Torch
- cuDNN, cuBLAS, etc
- C/C++
- Python and PyCUDA
